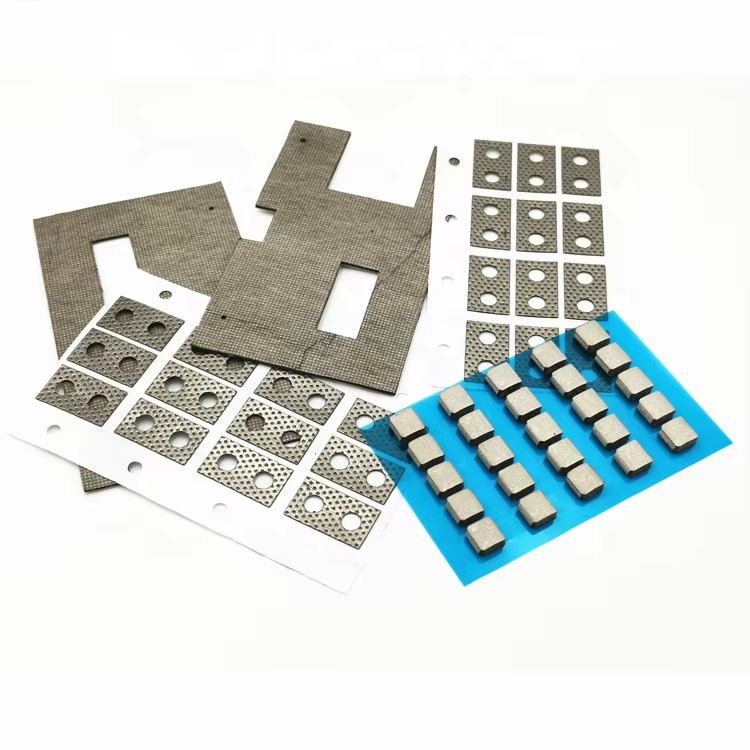

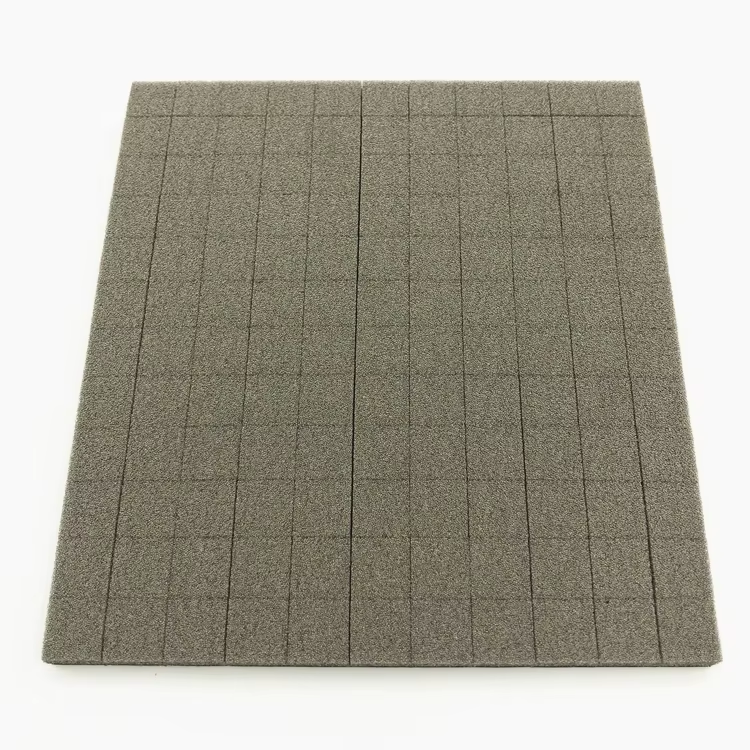

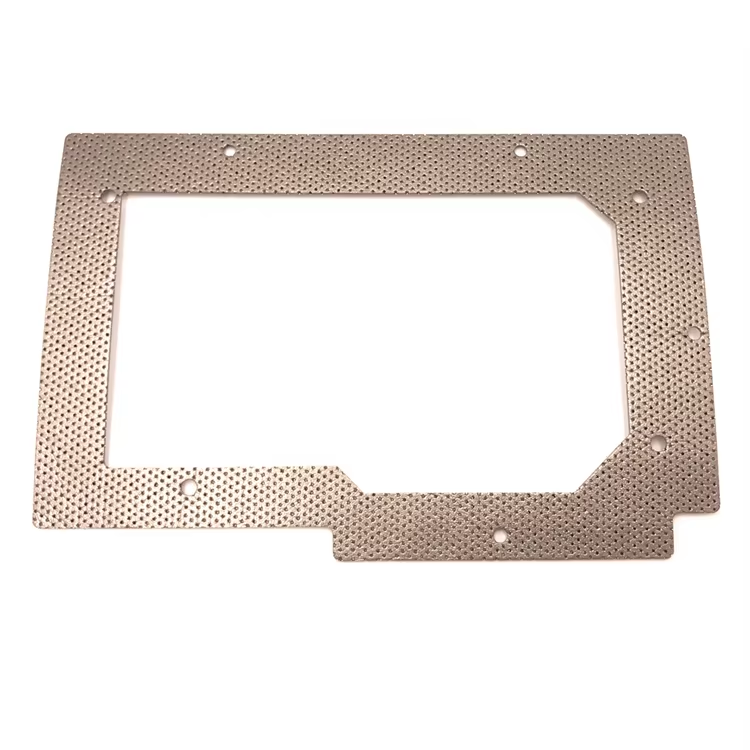

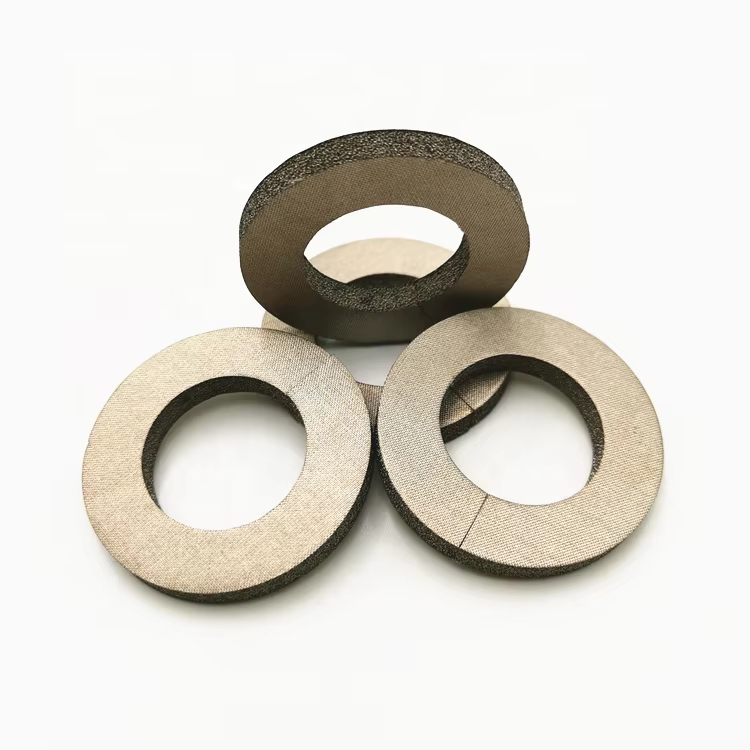

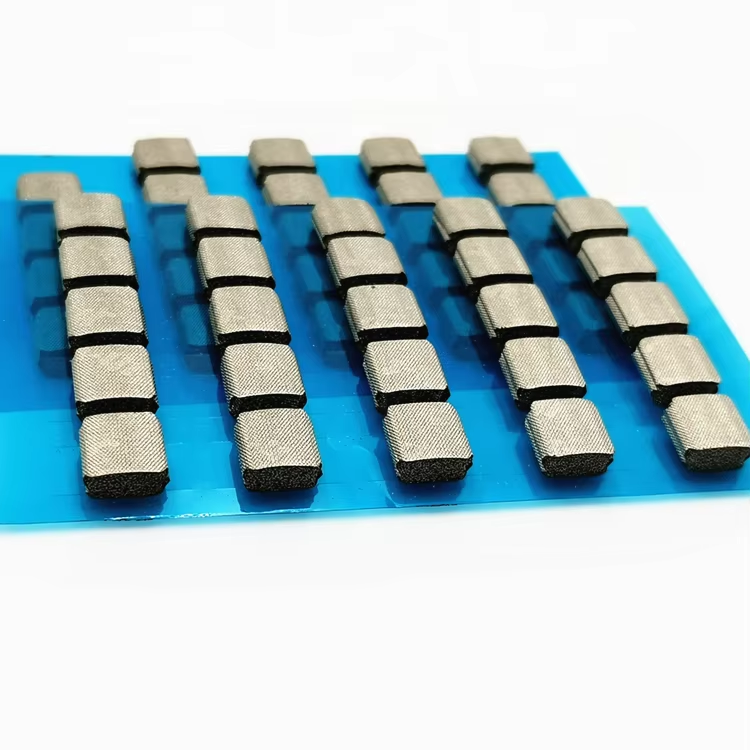

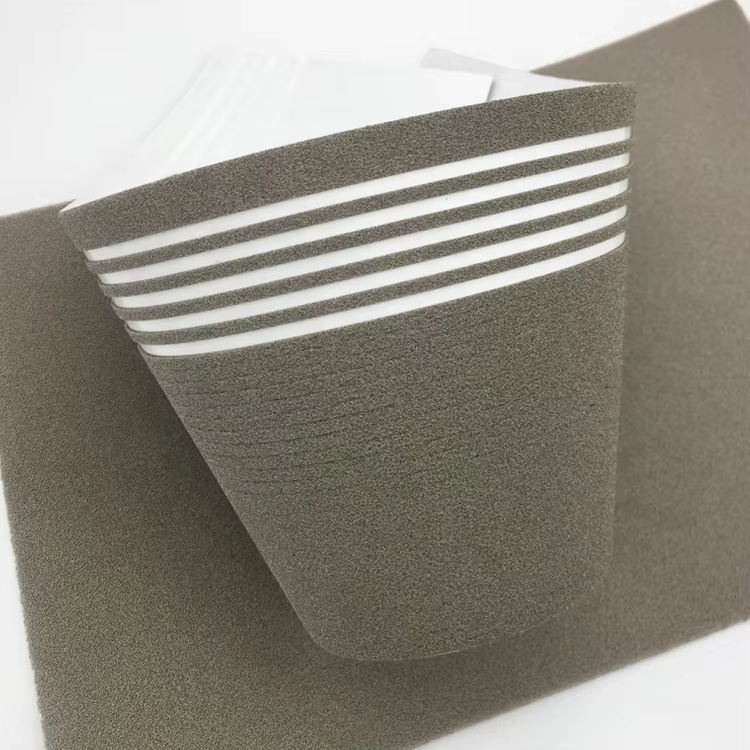

Custom Die-Cut EMI Shielding Gaskets – Conductive Metalized Foam for 360° Protection

1. Full-Perimeter EMI Shielding
Provides 360° electromagnetic interference protection with metalized conductive foam that maintains consistent shielding effectiveness (70dB+ attenuation) across all surfaces. The all-direction conductive properties prevent signal leakage in sensitive electronic enclosures and military communication equipment.

2. Custom Die-Cut Precision
Laser-cut to exact specifications with ±0.15mm tolerance for perfect fitment around connectors, displays, and chassis seams. Complex geometries including multi-level steps and chamfered edges ensure complete coverage without compression gaps in aerospace and medical devices.

3. Dual-Conductivity Performance
Features nickel/copper metallized polyurethane foam providing both surface and volume conductivity (＜0.05Ω/sq surface resistivity). The hybrid conductive network ensures reliable grounding while compensating for surface irregularities in automotive radar and IoT devices.

4. Environmental Sealing Capacity
Closed-cell foam structure compresses up to 50% while maintaining EMI performance. Provides IP67-rated environmental sealing against moisture, dust, and contaminants in outdoor electronics and industrial control systems.

5. Vibration-Resistant Durability
Withstands mechanical shock and continuous vibration (10-2000Hz frequency range) without performance degradation. The resilient foam core recovers to 98% original thickness after compression in transportation equipment and portable devices.
